13a twin socket outlet

13a twin socket outlet

It is a 13a twin socket outlet, finished in Gold painting. It with stylish modern, slim profile and have lightly lacquered surface to help reduce fingerprint marks.

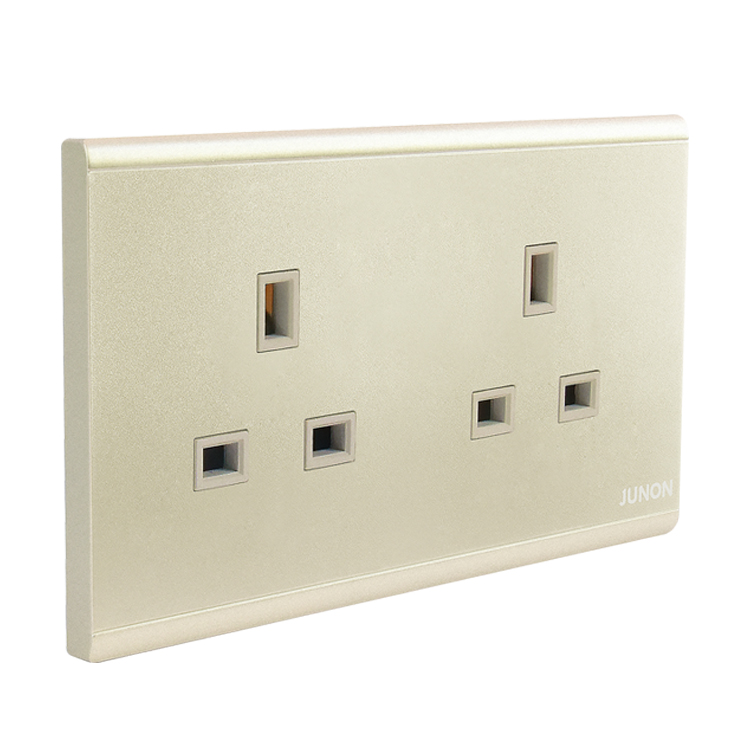

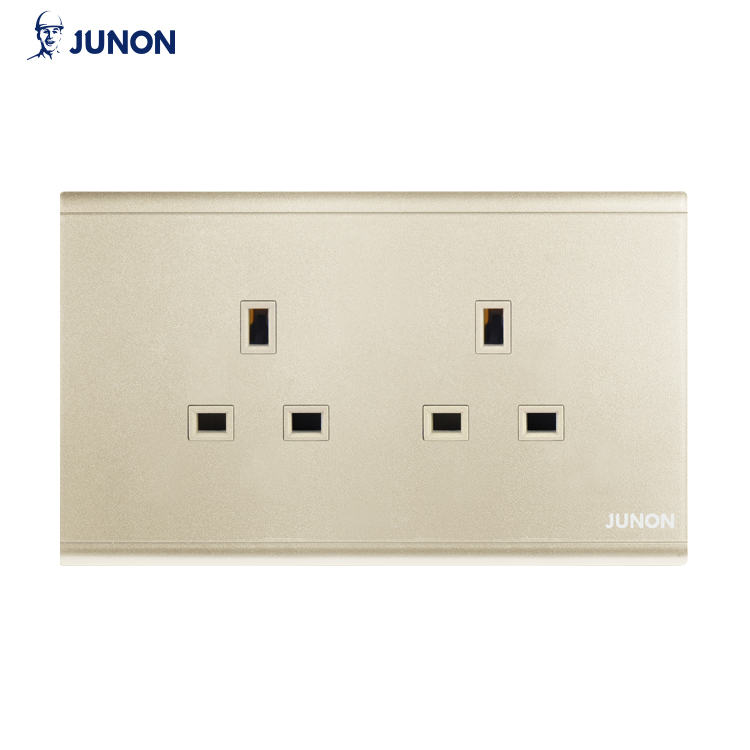

Product Image
(This is our conventional color. If you need other color, we can custom made for you. Ask our sales man for details.)

Name:  13a twin socket outlet
Socket number: Two
Size:  86*147mm
Color:  Gold
Product materials: Flame retardant PC ,copper
Rated current:  13A
Usage: Hotels, restaurants, homes, public places and other indoor places
Warranty: 10years
IP rate: IP20
Brand Name JUNON or OEM
sample free
Installation: Wall mounted
With standard fixing screw M3.5×23mm

Socket Data
Lifetime ≥5000
Heat-resistant 100·C/1h
Insulation Resistance ≥5M Ω
Damp Resistance 48h > 5M Ω
Temperature Raise ≤ 45K
Earthling provision ≤0.05M Ω
Electric Strength 2000V~1min
panel material PC
inside material phosphor copper
touch point material sliver alloy

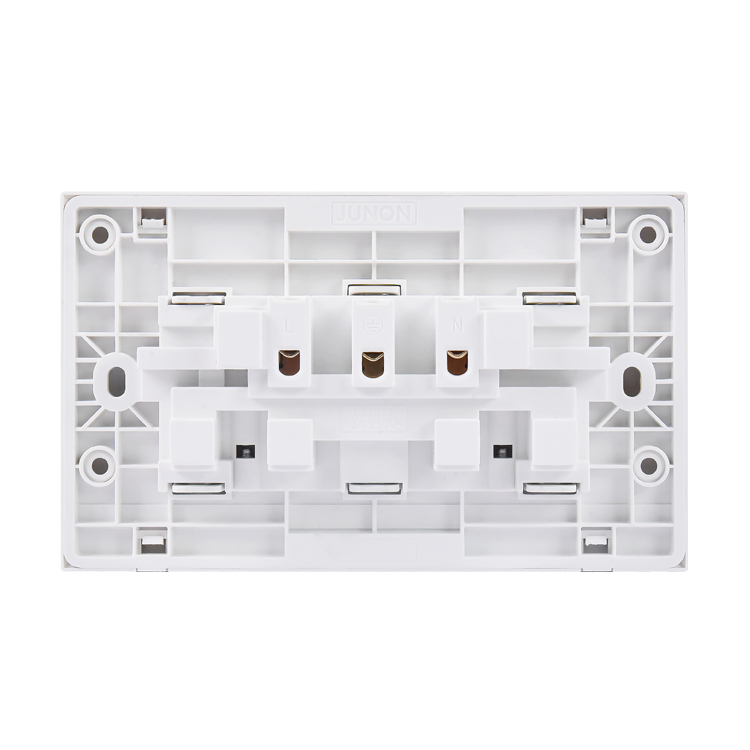

Internal structure
  1. Acrylic Crystal Panel-High quality, long life, smooth mirror face, easy to clean, leave no scratches
  2. Light indicator-Soft light display effect, warm reminder at night
  3. PC flame retardant cover-Pc flame retardant cover, top PC frame retardant material anti-aging. Effectively prevent fire.
  4. Safety door-child safety door, prevent single pole insertion.
  5. High precision buckle-accurate clasp, safety and stable
  6. Tin phosphor bronze internals
  7. High grade PC backside-hot firmament test 850degrees, ball pressure test 125 degrees, use of high quality PC materials

Packaging & Shipping
-Packed in Cartons.
-Shipping by Express or Delivery to Customers' agent warehouse in China.
-Also accept customized carton box.
-Port: Ningbo / Shanghai / as your request

Company Image

  • Inquiry response: Your inquiries will be replied in 24 hours
  • Sample support: free samples for you
  • Delivery time: 25-35days after deposit, according the quantity
  • Payment: TT,L/C

Click the link: www.junonelectrical.com or www.junlang.com for more technical info. And further information such as wiring diagram and instruction information of our 13a twin socket outlet. We are here to wait for your contact.
