2 Pole Circuit Breaker
Model No.: JMM-263C
Breaking Capacity: 6KA
MOQ: 5000 poles
Payment terms: T/T, L/C
Breaking Capacity: 6KA
MOQ: 5000 poles
Payment terms: T/T, L/C
What is a 2 pole circuit breaker?
Double-pole breakers have two hot wires that are connected by a single neutral wire. That means if there's a short circuit on either of the poles' hot wires, both trip. These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC's circuit.

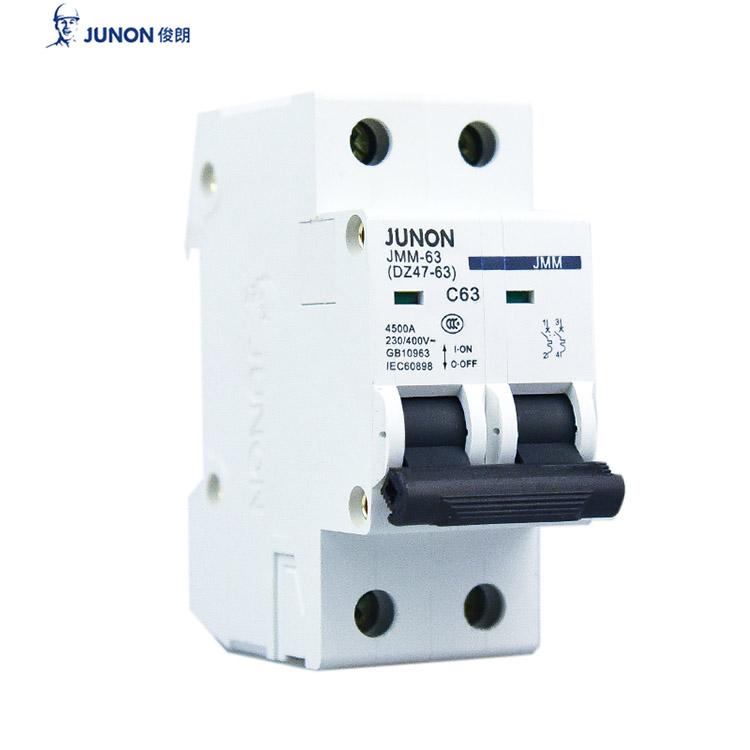

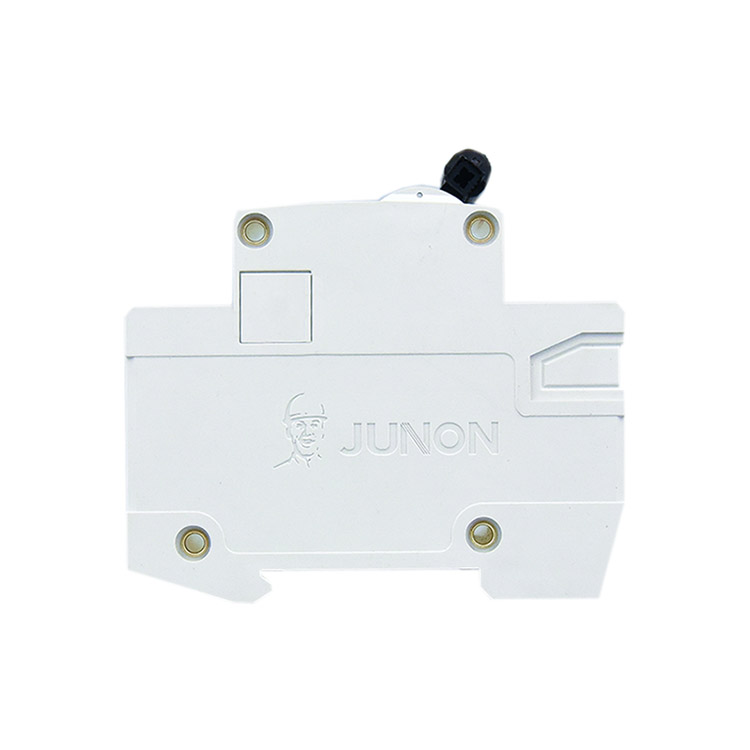

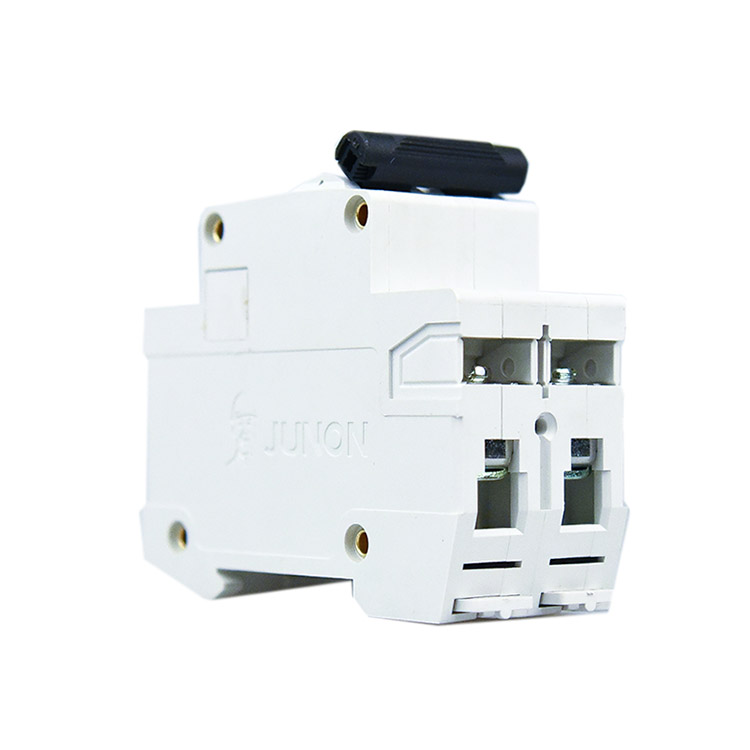

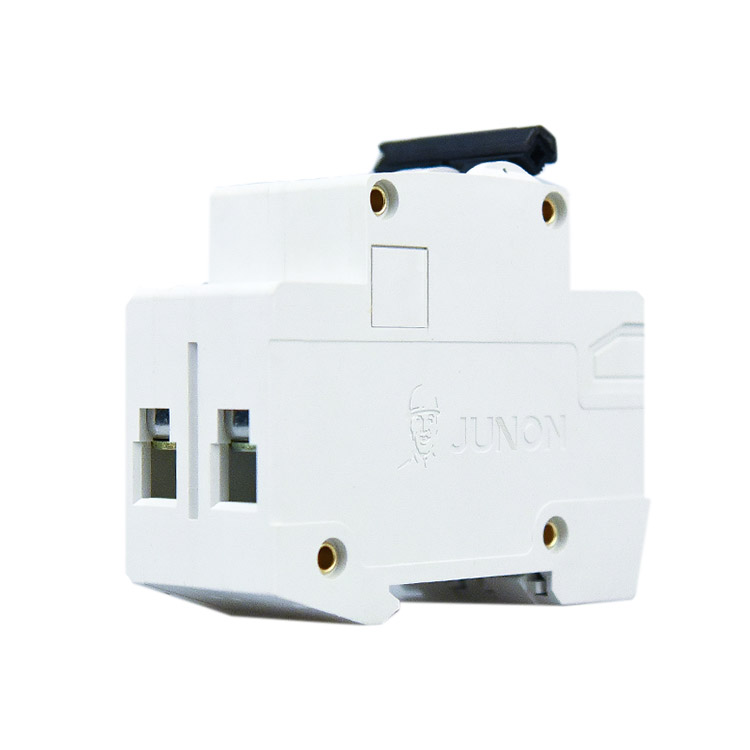

Product Images:
Double-pole breakers have two hot wires that are connected by a single neutral wire. That means if there's a short circuit on either of the poles' hot wires, both trip. These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC's circuit.
Product Images:
| Attribute | Value |
| Range | Circuit Breaker |
| Series | JMM |
| Number of Poles | 2 |
| Current Rating | 63A ( from 6A to 63A are available) |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 400V |
| Breaking Capacity | 6 KA |
Product Details:Place of Origin: ChinaBrand Name: JUNON Certification: CE, CCC etc. Model Number: JMM-263C Payment & Shipping Terms:MOQ: 5000 poles.Price: reasonable Packaging: standard in carton box Details: Delivery Time: 30~45 days Payment Terms: T/T, L/C, Western Union Supply Ability: 100,000 pcs/month JUNON JMM MCBs JUNON Electric Original Made In China Miniature Circuit Breakers up to 100 A Characteristic Product standard: GB10963.1/IEC 60898 Product Certification: CCC, CE, CCS, RoHS, ect. Product poles: 1P, 2P, 3P, 4P Tripping curve: B/C/D Breaking capacity: 6kA Rated current: 6~100A Base temperature: 30 ° C Use ambient temperature: -30 ° C ~ +70 ° C Mechanical life: 20000 Advantage Modular product * Each module is unified to a width of 9mm, which is simplified to simple 2. Tunnel terminal block Make the wire easy to be put into the correct position, the wire is crimped more firmly, and the terminal heat and product damage caused by poor contact caused by the virtual connection are prevented. 3. Bistable locking clip Easy to install on DIN international standard rails without special installation. It can be mounted vertically or horizontally on the track as needed without affecting its performance. 4. Thermoplastic casing Strong impact resistance Recyclable bouncy Self-extinguishing 5. Materials comply with CE, CCC Fully meet the domestic use and equipment export of OEM users. Application It is suitable for OEM protection of various industrial equipment and industrial control cabinets,and is not suitable for the protection of low-voltage distribution systems in the construction field.Additional information
Why choose us:1. Our company has more than 37 years of experience specially for switch socket and other electrical products 2. Our company had two QC departments, one for material another for finished product 3. Our company has own R&D department and mold development department 4. Our company invest two million RMB to set up labs to test flame resistance/ electrical conductivity/ stability/corrosion resistance/life time 5. Our company has two branch companies, one main for electric material, and another for OEM and ODM 6. Our company has more than 2000 workers, clear responsibility management, high efficient work and fast delivery time.      PS: Can you use a 2 pole breaker as a single pole? No problem as long as the double pole breaker is the same rating as the single pole breaker. 20 amp 240 volt substitute for 20 amp 120 volt. Just use one side of the breaker. Remember this is temporary and needs to be corrected. JUNON company not only has the 2 pole circuit breaker, also has ELCB, distribution box, LED lights and our main products – switches and sockets. Welcome to visit our website or contact us directly for more information. We are waiting for your contacts! 2 pole circuit breaker |
