6ka circuit breaker | Line breaker
Model NO. : J65163C
Brand: JUNON
Poles Number : 1
Type: Circuit Breaker
Brand: JUNON
Poles Number : 1
Type: Circuit Breaker
JUNON line breaker is mainly used for protecting against overload and short circuit under 50/60Hz, rated voltage 230/400V, and rated current from 6A to 63A. The product has neoteric structure, fast breaking, and prompts arc extinguishing and short tripping features.
About Line breaker
Product Images:
Products Advantages:
Technical Data
JUNON Research and Development
JUNON has founded for 36 years and accumulated rich experience of manufacturing, and up to now, it provides a 40000㎡ working area for more than 2,000 existing staff, producing 100 million switches per year, integrating research, production, sales and marketing successfully. In 2014, JUNON set up LED business department, aiming to take charge of the innovation and solution of the lightening project.
In past 36 years, JUNON has formed a diversified product platform. It has launched 10 new series of switches; its accurate positioning and concept inherit JUNON's creative spirit.
JUNON LED obtain some advantage of long life, no UV or IR Radiation, no mercy contamination, high luminous efficiency, excellent color rendering, good transmittance, good earthquake-resistance, high safety by industrial design and independent development. We provide a whole solution of control system for family and city.
JUNON's product not only has a fashionable and simple appearance but also have reliable product technology.
FAQ
Q: How long has your company been founded?
A: our Company established in year 1983, already 37 years’ experience till now.
Q: Can you do OEM for us?
A: Yes, of course .OEM is welcomed .We can provide the customized logo, package and according to your requirement.
Q: Does your company is a factory or trade company?
A: We are a manufacturer, we have a factory ourselves. All parts of the products are produced in our factory. Our factory is very famous in china,
Q: What is your company’s main product?
A: Wall switch, socket, distribution box, LED light and circuit breaker etc.
To get more details for our line breaker please do not hesitate to contact us.
6ka circuit breaker
About Line breaker
| Model NO. | J65163C |
| Brand | JUNON |
| Poles Number | 1 |
| Type | Circuit Breaker |
| Function | Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection |
| Certification | ISO9001-2000, CE, CB |
| Poles | 1, 2, 3, 4 Poles Number |
| Specification | 63A, 230/400V |
| Protection | Short Circuit, Overload |
| Contact | Silver Alloy, Copper |
| Parts | Copper, Brass |
| Shell | Fireproof, Flame Retardant |
| Performance Level | B, C, D Curve |
| Transport Package | 120PCS/CTN |
| Specification | J63-63 1P C63A |
| HS Code | 853620 |
| MOQ | 2000pcs |

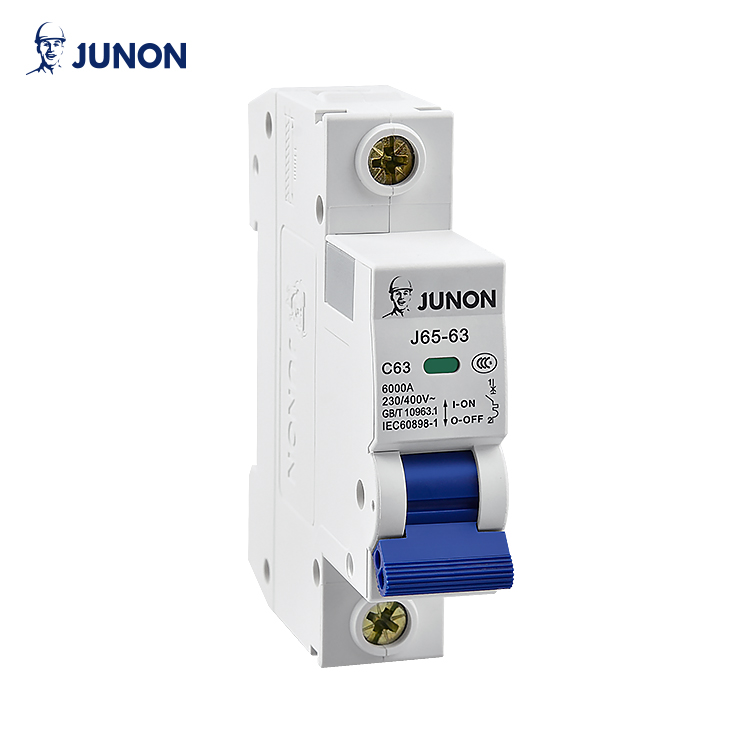

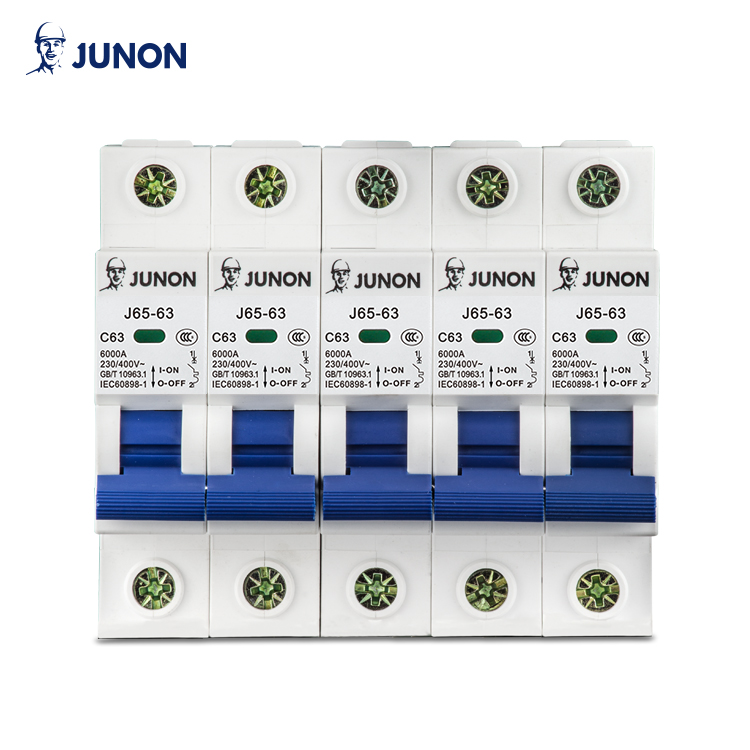

Product Images:

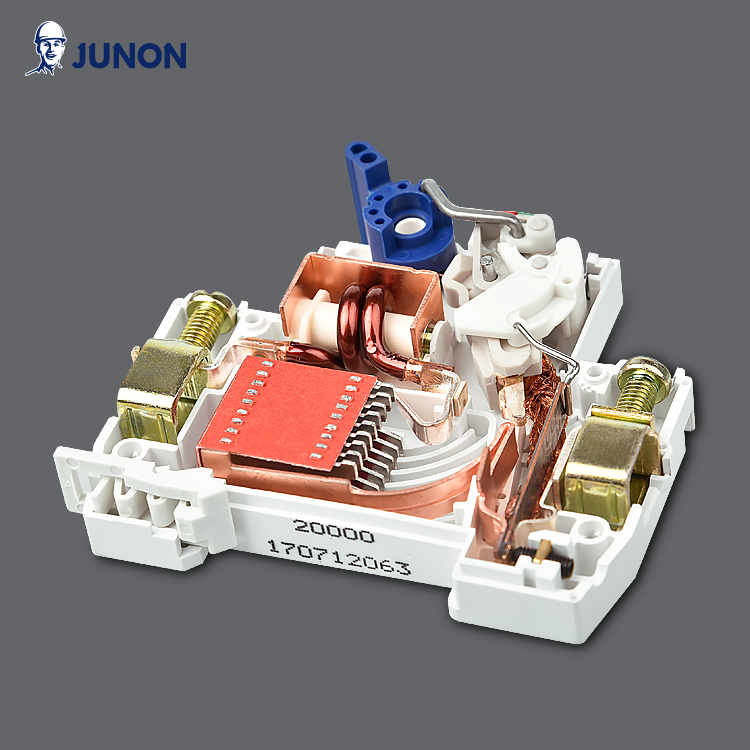

Products Advantages:
- Fire-proof Nylon PA66
- Silver Alloy Contacts
- Copper Moving Contacts
- Overload Bimetal Strip
- Magnetic short Circuit Tripper
- 5 rivets to be fixed on side, which make our miniature circuit breaker 1P 6A to 63A to be stronger.
- Unique access to the indicator window, after the switch is locked, can still clearly show the operating state (for electrician maintenance).
- Innovative Anti-Slip, widened handle (switch on / off comfortable and convenient).
- The wiring terminal can connect two different types bus bar of fork type or u type (installation is more convenient).
- Dual side groove ventilation design, easy for heat dissipation, improves melting degree (more safe electricity).
Technical Data
| Rated Current (In) | 6A 10A 16A 20A 25A 32A 40A 50A 63A |
| Poles | 1P 2P 3P 4P 1P+N 3P+N |
| Rated Voltage | 230/400V |
| Rated Breaking Capacity | 4500A/6000A |
| Thermo-magnetic release Characteristic | B C D |
| Rated Frequency | 50/60Hz |
| Electrical Life | 4000 |
| Mechanical Life | 10000 |
| Guarantee | 2 YEARS |
JUNON Research and Development
JUNON has founded for 36 years and accumulated rich experience of manufacturing, and up to now, it provides a 40000㎡ working area for more than 2,000 existing staff, producing 100 million switches per year, integrating research, production, sales and marketing successfully. In 2014, JUNON set up LED business department, aiming to take charge of the innovation and solution of the lightening project.
In past 36 years, JUNON has formed a diversified product platform. It has launched 10 new series of switches; its accurate positioning and concept inherit JUNON's creative spirit.
JUNON LED obtain some advantage of long life, no UV or IR Radiation, no mercy contamination, high luminous efficiency, excellent color rendering, good transmittance, good earthquake-resistance, high safety by industrial design and independent development. We provide a whole solution of control system for family and city.
JUNON's product not only has a fashionable and simple appearance but also have reliable product technology.
FAQ
Q: How long has your company been founded?
A: our Company established in year 1983, already 37 years’ experience till now.
Q: Can you do OEM for us?
A: Yes, of course .OEM is welcomed .We can provide the customized logo, package and according to your requirement.
Q: Does your company is a factory or trade company?
A: We are a manufacturer, we have a factory ourselves. All parts of the products are produced in our factory. Our factory is very famous in china,
Q: What is your company’s main product?
A: Wall switch, socket, distribution box, LED light and circuit breaker etc.
To get more details for our line breaker please do not hesitate to contact us.
