Assembly Box|electric power distribution box

Assembly Box|electric power distribution box

Model No.: DX12-B012A/T/C
MOQ: 500 pcs
Brand: JUNON
Standard: IEC

JUNON V12 series Distribution box, also known as assembly box, switch box and distribution board, is a complete set of equipment for centralized installation of switches, instruments, protective appliances and auxiliary equipment on the metal cabinet panel. Commonly used distribution box has two kinds of plastic and iron plate. It is convenient for management and convenient for maintenance in case of circuit failure.

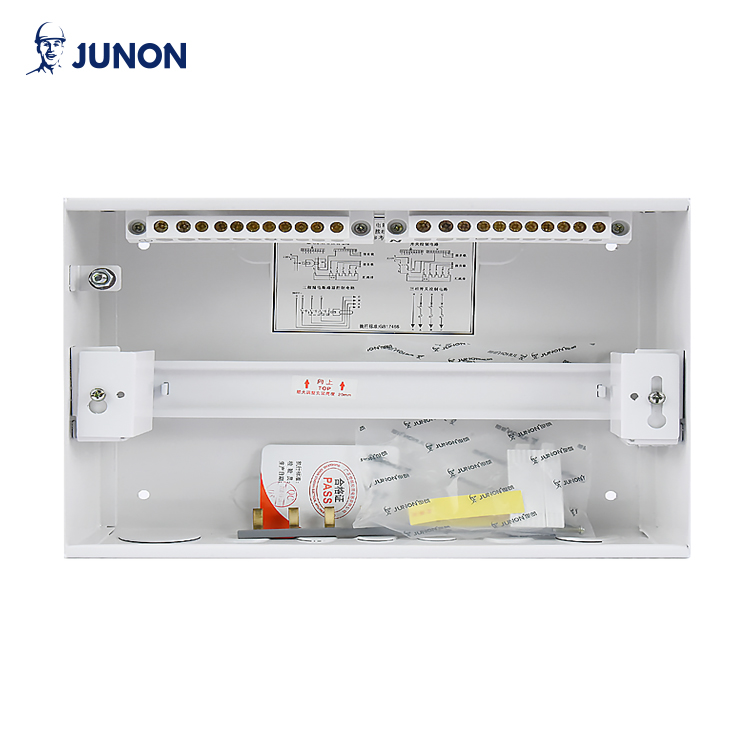

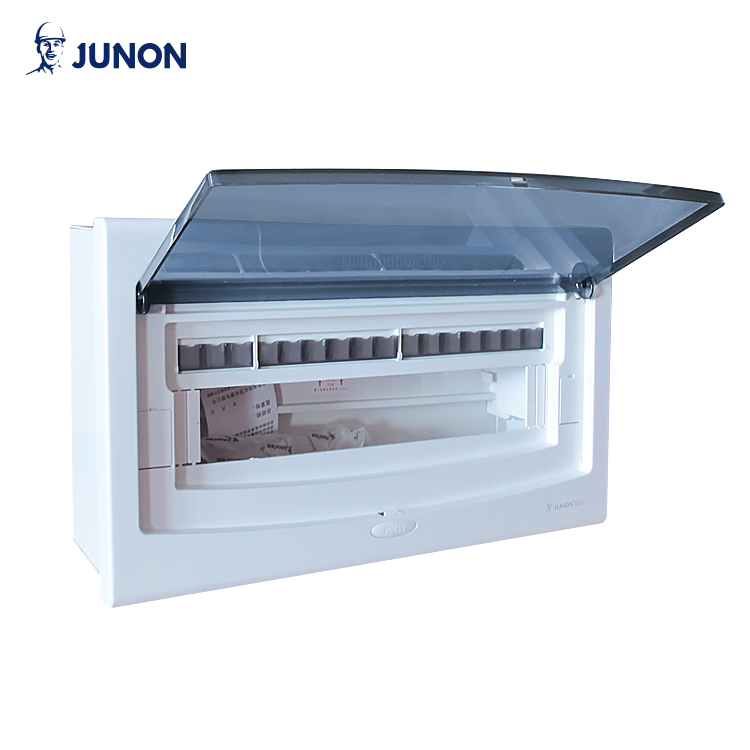

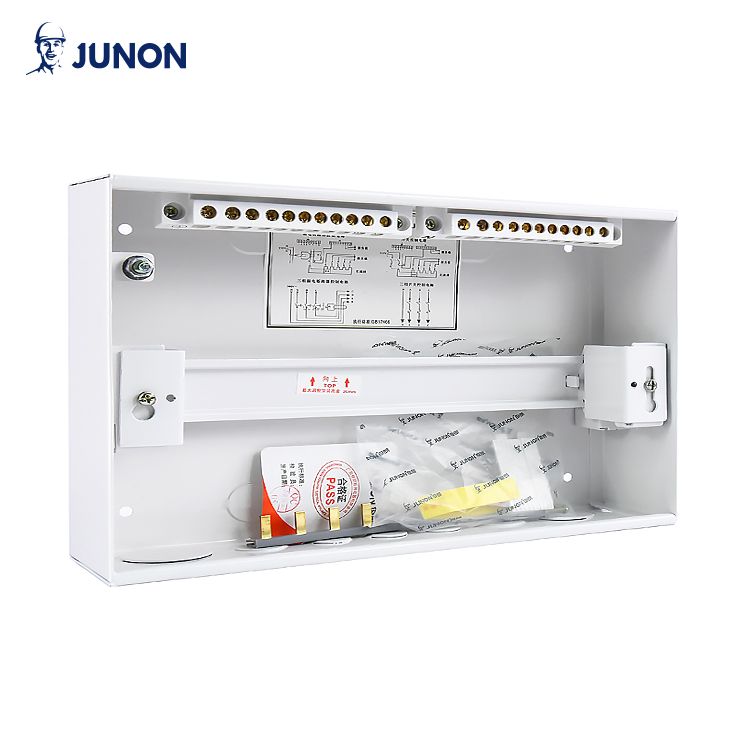

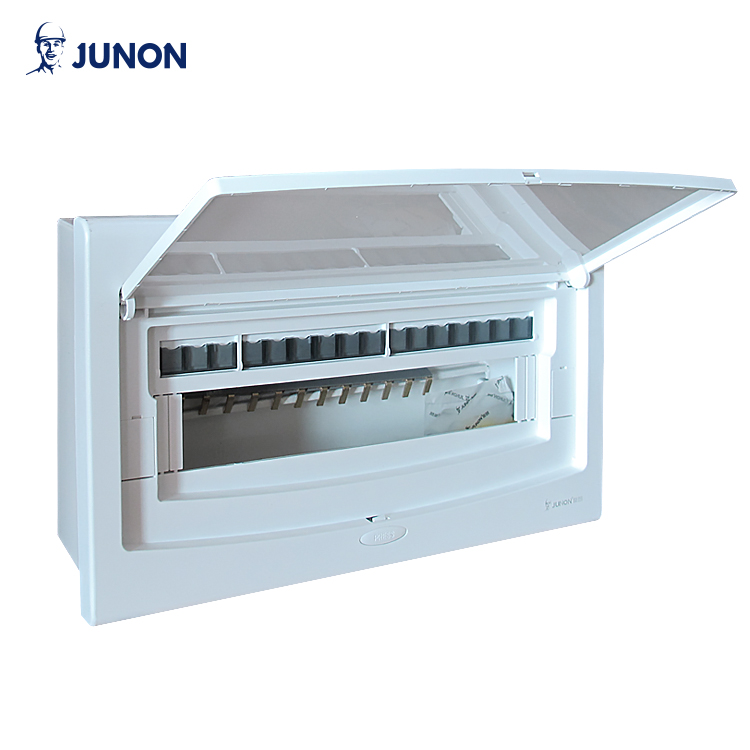

Pictures of assembly box:

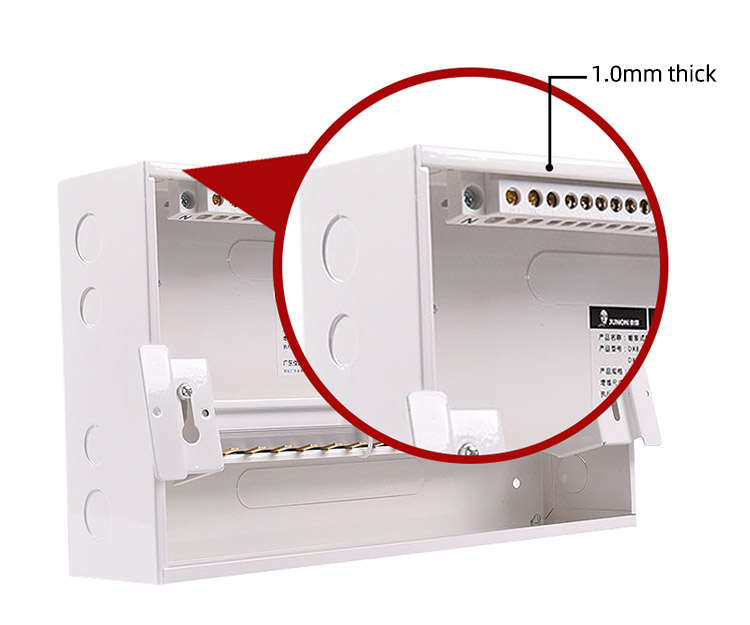

Made out of high quality steel sheet of up to 1.0-1.2 mm thickness, or fireproof plastic for the base.
Glossy-finish powder coated painting.
Knockouts provided on top and bottom of the enclosure, can be round shape or square shape.
Accept all Plug-in type miniature circuit breakers.
Suitable for AC 50/60Hz, rated voltage 120/240V, 240/415V, rated current up to 100A.
Wider enclosure offers the easy wiring and the excellent heat dissipation

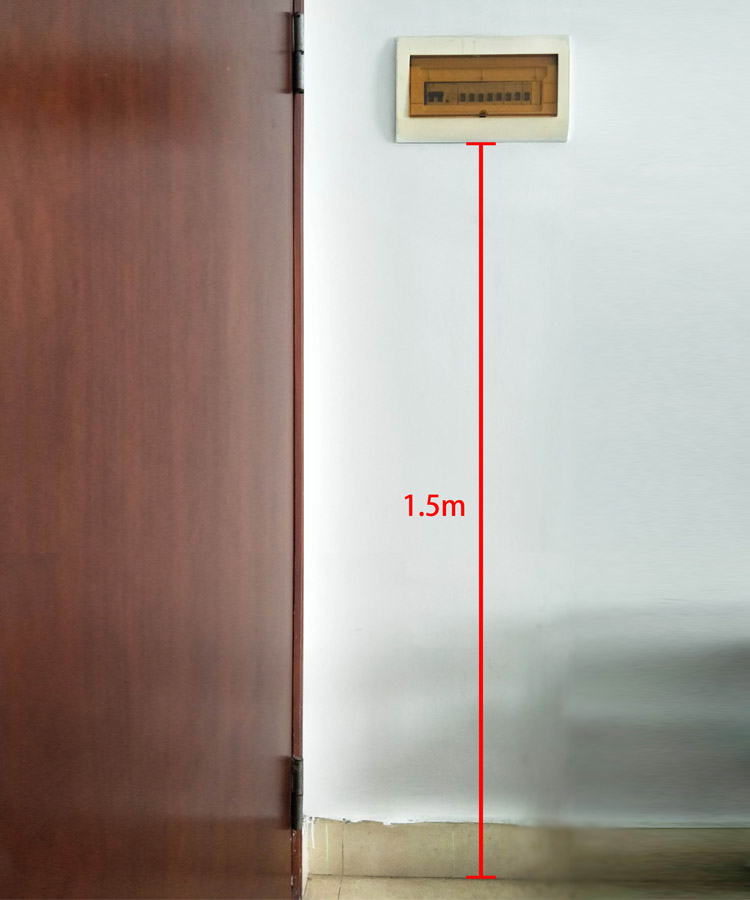

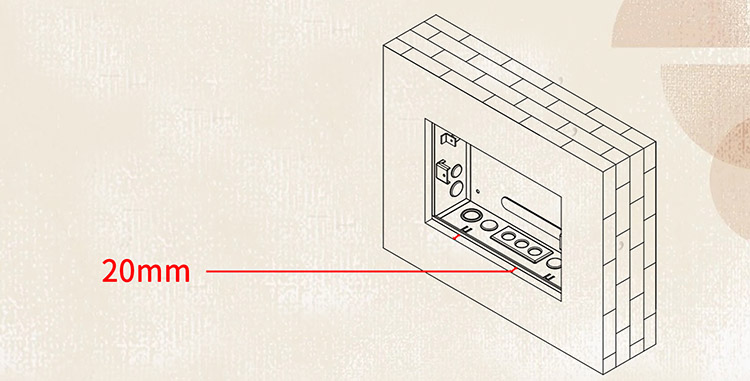

Flush and surface mounted designs.

Basic Info.
Model No.: DX12-B012A/T/C
Range: V12
Description: Assembly box
MOQ: 500 pcs
Brand: JUNON
Standard: IEC

Size: 12 Way
Shell material: PC
Base material: 1.0mm thick iron sheet
Protection grade: IP 30
Base material option: metal or plastic
Painting : powder coating painting
Options of painting: Matte or Glossy
Phase : Single
Row: one
Front window color: White, gray transparent, yellow transparent
Busbar material: copper
Earth bar material: copper
Netural bar material: copper
Delivery time: 1X40HQ in 35 days
Package: 1 pc in 1 box, 5 boxes in 1 carton
Packing box design: JUNON or customize, and plain box for small quantity.
Logo : Laser printing on the cover of the box

V12 series single phase assembly box has been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. They are available in Plug-in designs for indoor applications.

Package & Shipping
1 pc in 1 box and 5 boxes in 1 carton. Single box can be designed according customers' requirements.
There are 3 ports in Shunde for you to choose, or you can choose the near one such as Guangzhou or Shenzhen.

Delivery Time
30 days for 1X20ft container, 30-45 days for 1X40HQ container

Payment Terms
30% as deposit, and the balance against delivery. (T/T, L/C in EXW, FOB, CNF, CIF...)

Other Notification:

Should you have any requirement of our assembly box, please feel free to contact us at anytime and anywhere, our JUNON team is always standby.
