MCCB Panel Board|wholesale electrical panel board factory
Model No.: V16-MCCB-12/H
Type: MCCB 3 phase
MOQ: 200 pcs
Payment Terms: T/T
Type: MCCB 3 phase
MOQ: 200 pcs
Payment Terms: T/T
JUNON V16 series distribution board range has been developed to meet of different demands, electrical contractors and distributors, resulting in a high quality, value-for-money board that is versatile and easy to install, confirming to the latest international standards.
Pictures of the board
Specification:
Technical Details
About us:
Brief introduction:
JUNON Electrical Co. Ltd was founded in 1983, as an experienced manufacturer in the low voltage electrical field, we are specialized in manufacturing advanced switches and sockets, distribution box, miniature circuit breakers, and distribution board with its accessories.
Location:
Longsheng South Rd, Leliu Town, Shunde Dist, Foshan City, Guangdong, China
Which is one hour from Guangzhou airport by car.
Certificate:
V16 series win good popular with IEC certificate. Main current 250A pan assembly passed breaking capacity of 20KA within 0.2S.
Pre-sales service:
1. For all your inquiries about us or our products, we will reply you within 24 hours.
2. Our sales are able to communicate with you in English. Feel free to email or call us.
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
After-sales Service:
1. Quick reply on customers' questions.
2. Our company will take responsibility for products with quality problems if they are caused by us.
3. We ship goods by UPS/DHL/FEDEX/TNT express which takes 7-10 days to arrive, or by air which takes about 7 days to arrive, or by sea which takes about 30-45 days to arrive. All depend on your actual need.
To get better price and good support for the MCCB panel board, you may contact our export sales team for more information, we are 24 hours standby.
wholesale electrical panel board factory

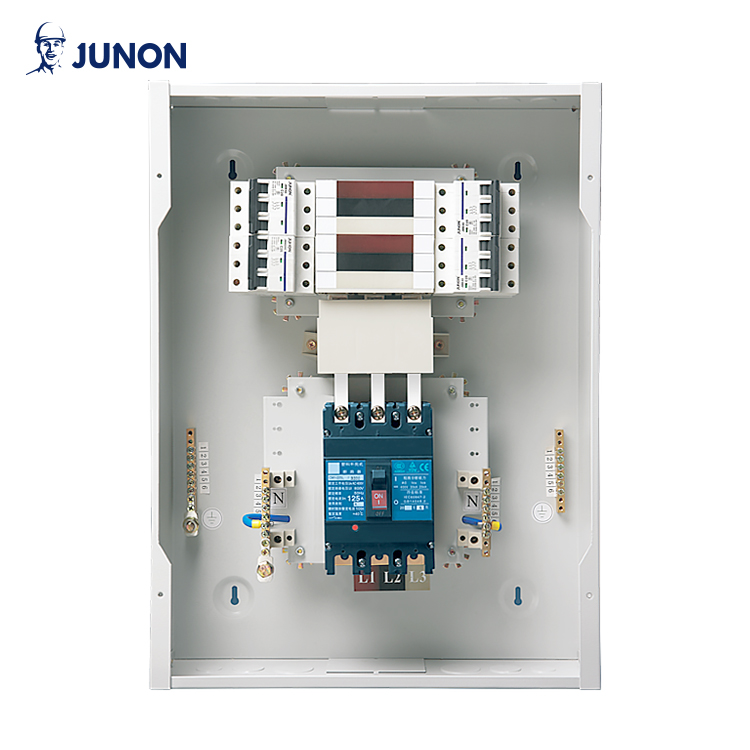

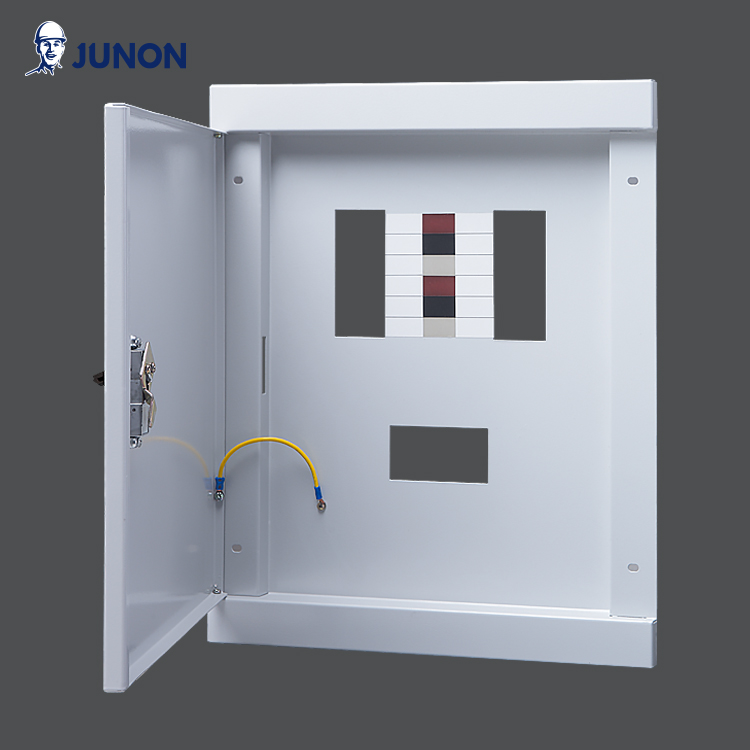

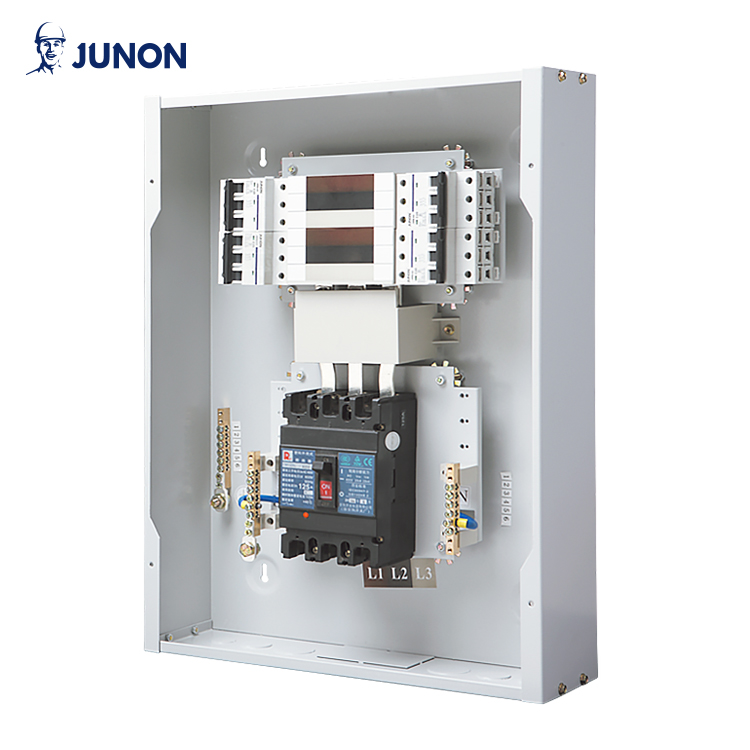

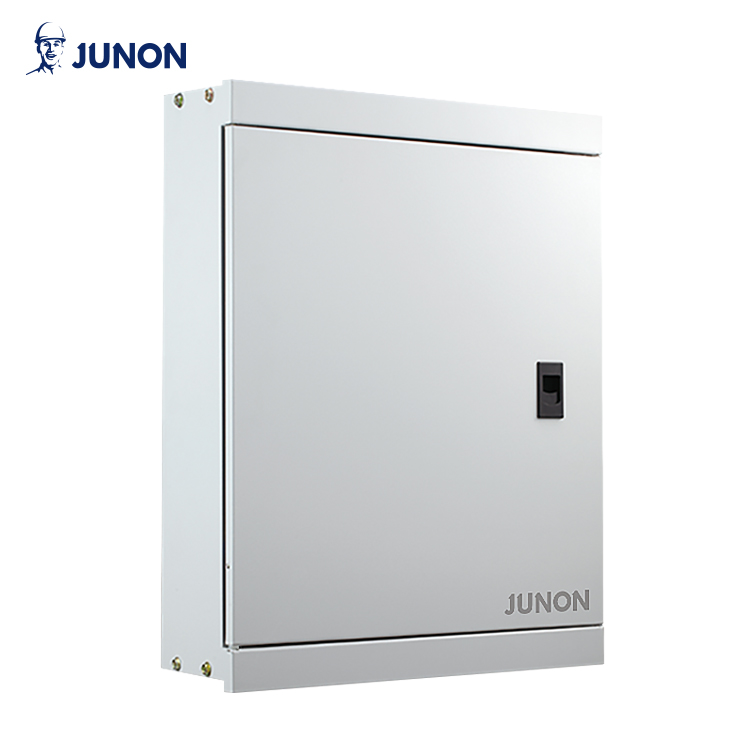

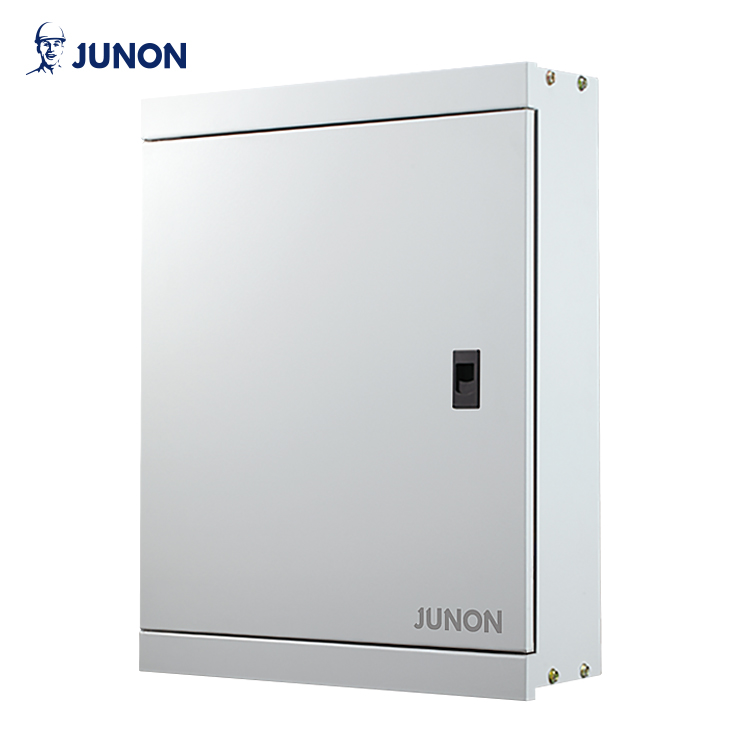

Pictures of the board
Specification:
| Service voltage: | AC 415 / 240 / 120V |
| Rated insulation voltage: | 600V |
| Frequency: | 50 / 60Hz |
| Ambient temperature: | 50°C |
| Covers the range from : | 12W,18W, 24W, 36W without breakers |
| Incoming: | MCB, ELCB, ISOLATOR, MCCB |
Technical Details
| Compliance with standards | IEC 60439-1&2 |
| Rated service voltage Ue | up to 690 V |
| Rated insulation voltage Ui | up to 1000 V |
| Rated frequency | 50-60 Hz |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated current In | up to 630 A |
| Rated short-time short-circuit withstand current Icw | up to 50 kA |
| Rated peak short-circuit current Ipk | up to 105 kA |
| Degree of protection IP | 30 |

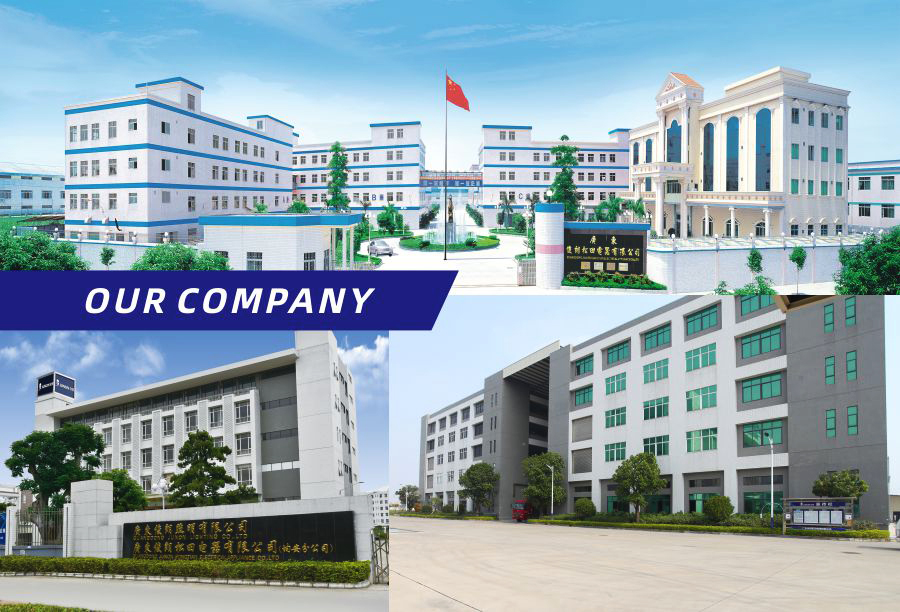

About us:
Brief introduction:
JUNON Electrical Co. Ltd was founded in 1983, as an experienced manufacturer in the low voltage electrical field, we are specialized in manufacturing advanced switches and sockets, distribution box, miniature circuit breakers, and distribution board with its accessories.
Location:
Longsheng South Rd, Leliu Town, Shunde Dist, Foshan City, Guangdong, China
Which is one hour from Guangzhou airport by car.
Certificate:
V16 series win good popular with IEC certificate. Main current 250A pan assembly passed breaking capacity of 20KA within 0.2S.
Pre-sales service:
1. For all your inquiries about us or our products, we will reply you within 24 hours.
2. Our sales are able to communicate with you in English. Feel free to email or call us.
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
After-sales Service:
1. Quick reply on customers' questions.
2. Our company will take responsibility for products with quality problems if they are caused by us.
3. We ship goods by UPS/DHL/FEDEX/TNT express which takes 7-10 days to arrive, or by air which takes about 7 days to arrive, or by sea which takes about 30-45 days to arrive. All depend on your actual need.
To get better price and good support for the MCCB panel board, you may contact our export sales team for more information, we are 24 hours standby.
wholesale electrical panel board factory
