one gang switch | IN WALL WIFI SWITCH
Model No.: PJ/9WIFI/USB/D
MOQ: 500 pcs
Warranty: 3 years
Payment Terms: T/T
MOQ: 500 pcs
Warranty: 3 years
Payment Terms: T/T
PJ series In Wall WIFI Switch, 86 Panel Home Router and 5V USB LAN with 300Mbs transmission speed. Professional design for the hotel and home decoration products , WiFi access point, to provide users with convenient WLAN service using standard 86 boxes, with the existing building structure, without consuming more time and cost, you can easily set up a wireless network complete.

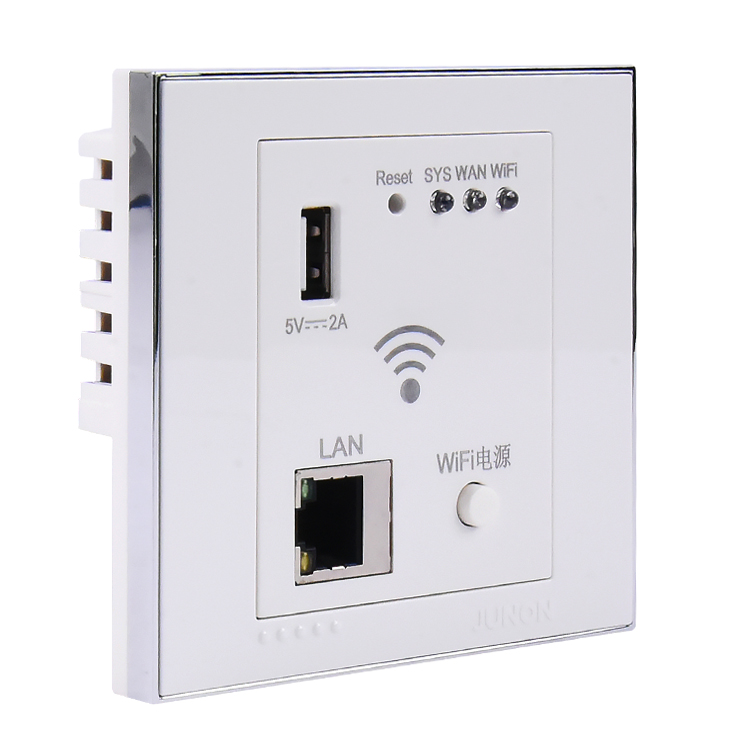

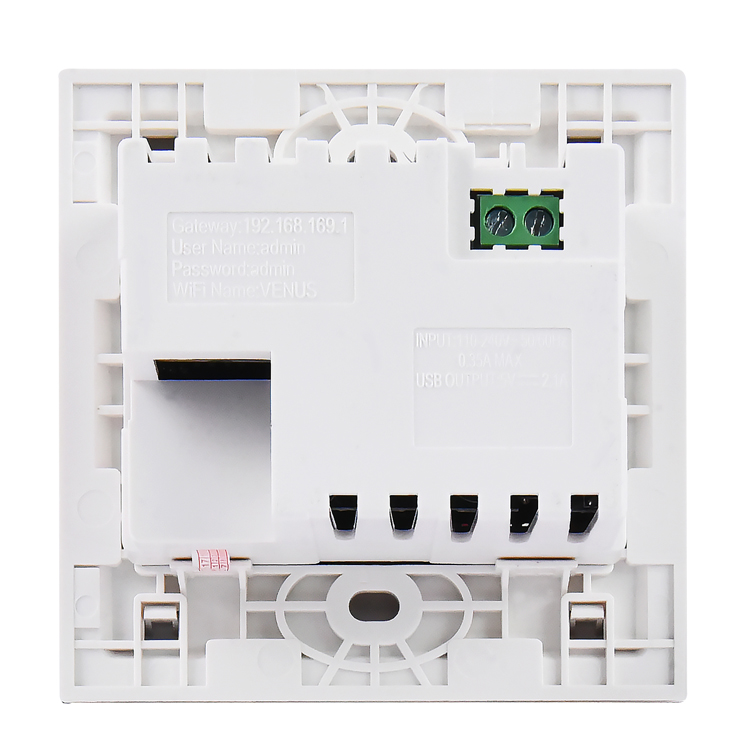

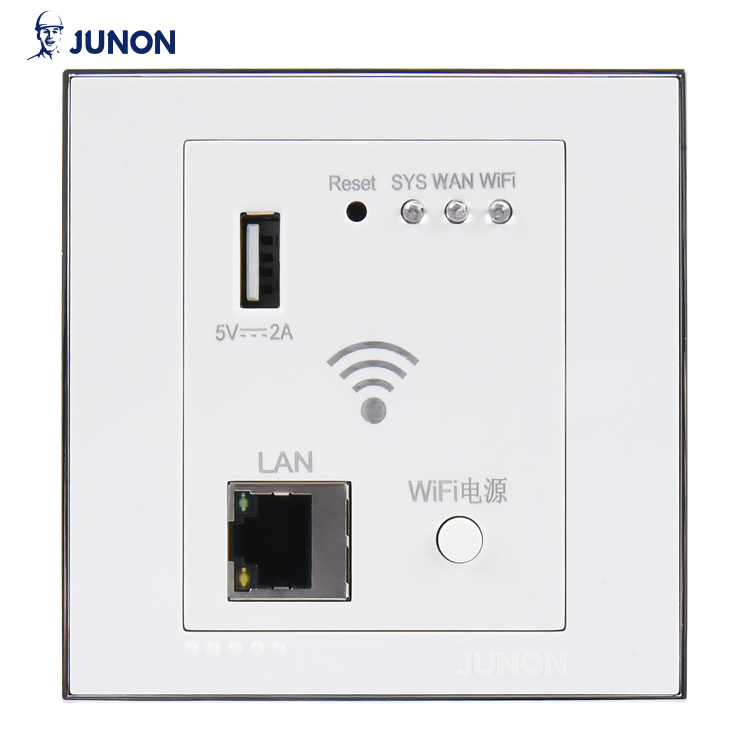

Picture of Product
Specifications:
1. With 1 USB port.
2. USB Output: 5V 2.0A in total.
3. Input: 110~250V, 50/60Hz
4. Rated Voltage(s): 250V AC/50Hz
5. Rated Current: 10A
6. Provision for earthing: With earthing contact
7. Degree of protection against electric shock: With increased protection
8. Type of terminals: Screw-type
9. Dimension: 86mm x 86mm
10.Color: White
Package included:
1 x In Wall Wifi Switch
1 x User Manual
2 x Screws
Technical Data
Power supply: Support AC power supply (100V-240V), or POE 24V.
1*10 / 100Base-Tx POE WAN port (port with internal wiring, dark line access)
1*10 / 100Base-Tx LAN port
1* USB interface
1* Reset button
1* 220V interface (optional external power access)
Default web address: 192.168.169.1
The default login name: admin
Password: admin
Power <5W
Antenna: Omni-directional Built-in 3dBi antenna
WiFi Technology Standards:
The highest rate of IEEE802.11n 300Mbps Wireless
Maximum output power: 20dBm
Frequency range: 2.4-2.484GHz
Channel bandwidth: 20 / 40MHz
Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES
Computer Setup: Start, Control Panel, Network and Internet, Network and Sharing Center, Change adapter
Settings, Wireless network connection, Attribute, Internet protocols, Obtain IP address automatically, Sure.
Support bridging mode, needing data unification
Support System: Windows XP/Vista/Win7/Win8
Wireless transmit power: 14 ~17 dBm (Typical)
Operating temperature: 0 °C ~40 °C
Storage temperature: -40 °C~70 °C
Relative humidity: 10% ~ 90% (Non-Condensation)
FAQ
1. Can I get a sample?
Yes, we will offer you sample to check the quality, but need you pay for the shipping cost and sample fee.
2. What is the sample ready date?
Sample ready date: usually 5-9 working days.
2. What is the MOQ for mass production?
Usually 500pcs.
3. What is the production lead time?
30 days for neutral products. 30-45 days for OEM products.
4. Can I put my logo on the products?
Yes. Please offer the logo documents to us, we can lazer your logo on the surface of the products.
5. Can I customize the color, package?
Yes, but usually require MOQ500pcs for color customize, MOQ1000pcs for color box customize.
6. How to ship the products? Can I use my freight forwarder?
Express, sea shipping, air shipping, railway transportation, etc. Of course you can use your shipping agent to arrange the shipping.
7. What is your payment terms?
T/T, can accept 30% deposit, 70% balance before shipping.
To know more information about JUNON In Wall Wifi Switch, or get good price for selling, welcome to contact our sales team any time. We will get back to you within 24 hours.
