Power Panel Box

Power Panel Box

Series: V11 series
Lock Material: Metal
Phase: Three-phase
MOQ: 3000PCS

Power Panel Box


Quick Details

Series: V11 series

No. of Ways: 6 units,8 units,10 units and 12 units ( 1 row)

           16 units, 20 units and 24 unit s (2 rows)

           30 units and 36 units (3 rows)

Installation: Flush Mounted / Surface Mounted

Material: 1.2mm Cold-Rolled Steel

Lock Material: Metal

Rated Voltage: 400V~

Rated current: 125A

Rated frequency:  60Hz

IP rating: IP30

Package: 1pc/carton, 490*138*408mm

Open Angle: Max.180°

Phase: Three-phase

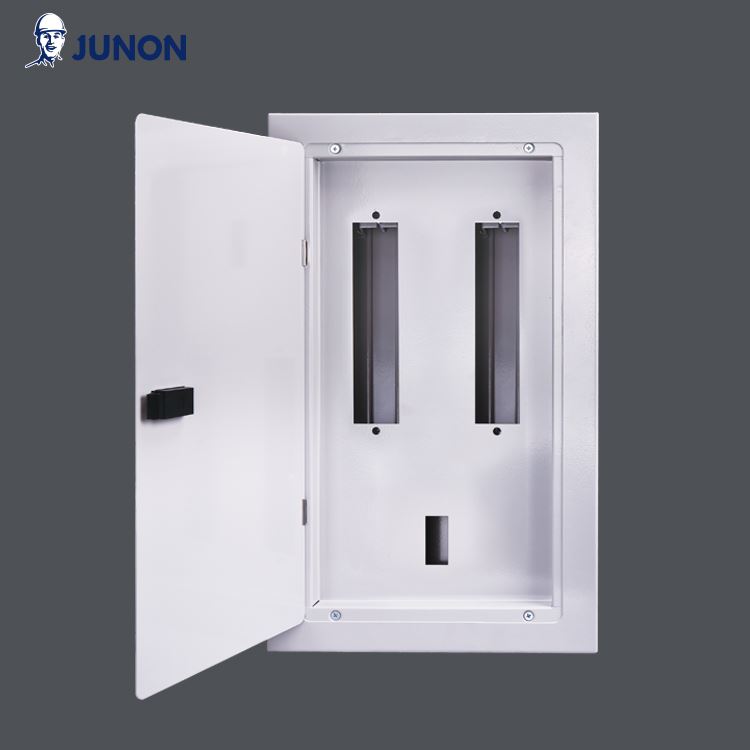

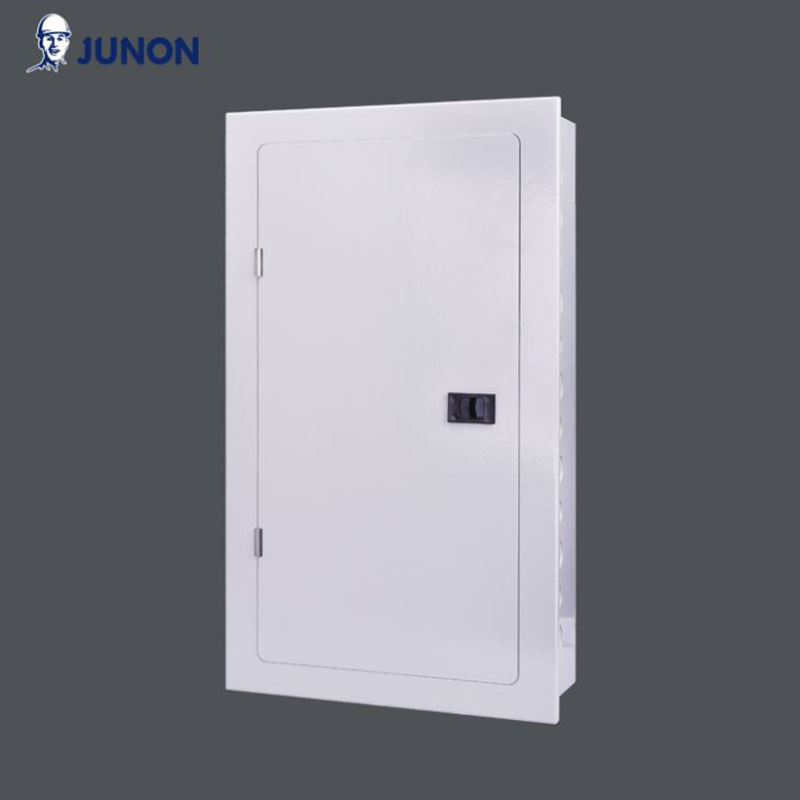

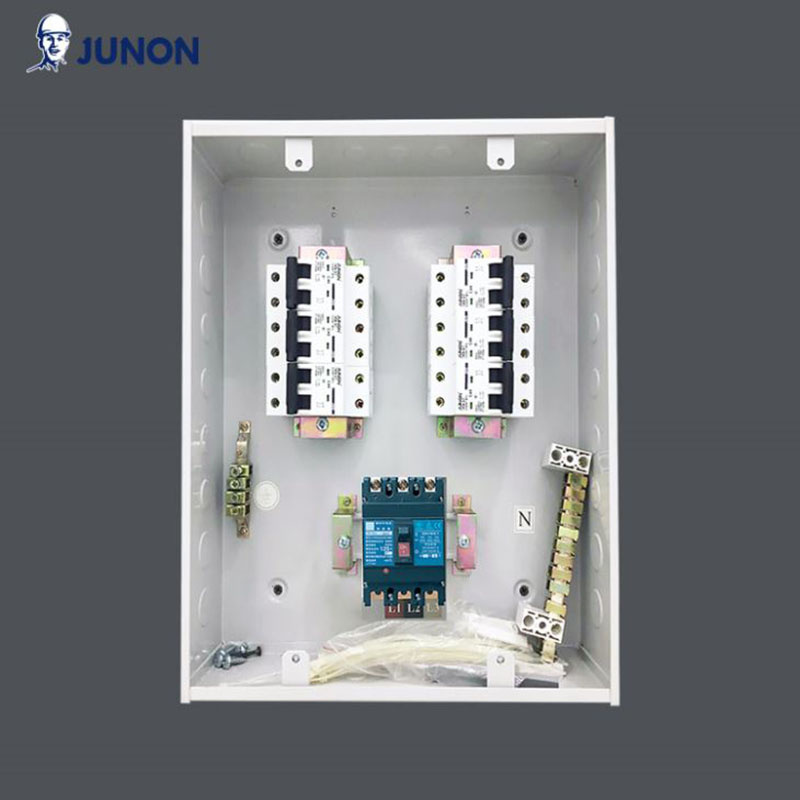

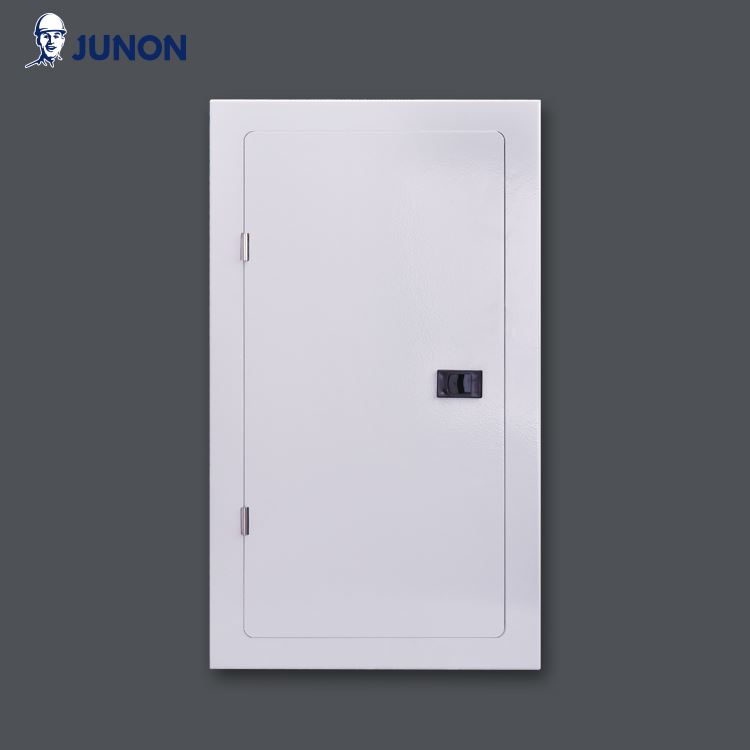

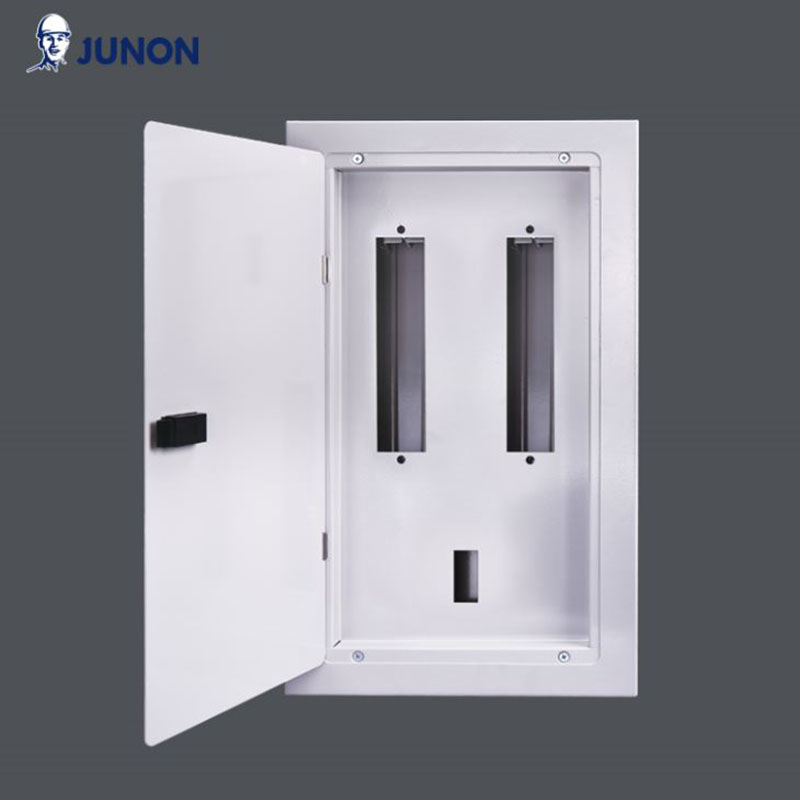

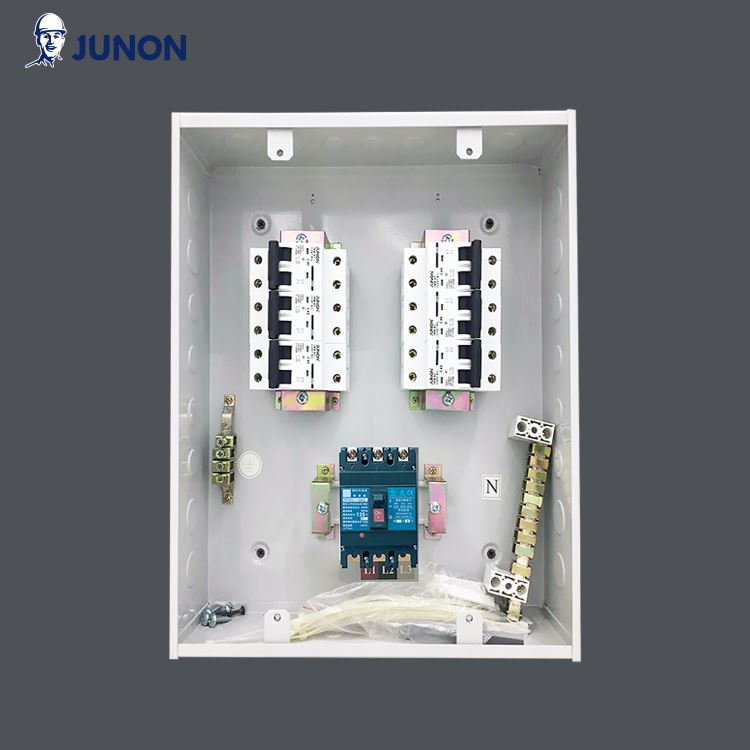

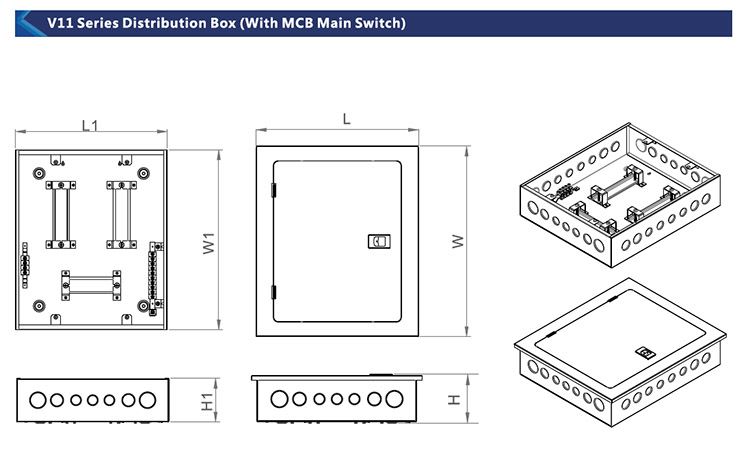

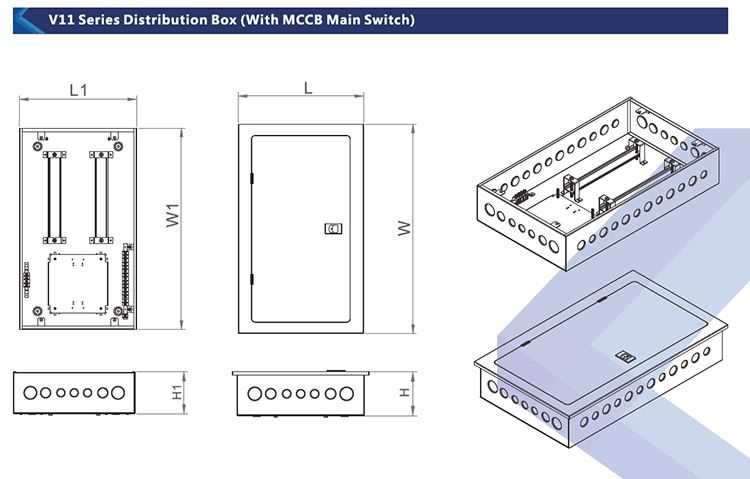

Product Image:

Why Choose Us

1. We take customer's requirements as our mission, and take each detail very carefully.

2. We have more than 20-year experience for exporting business.

3. We try to support our customers always, including delivery time, price ,pre-sale, after-sales, though we are not the best, but  we are always to improve ourselves and meet your needs.

4. Choose us ,will don't make you disappointed.

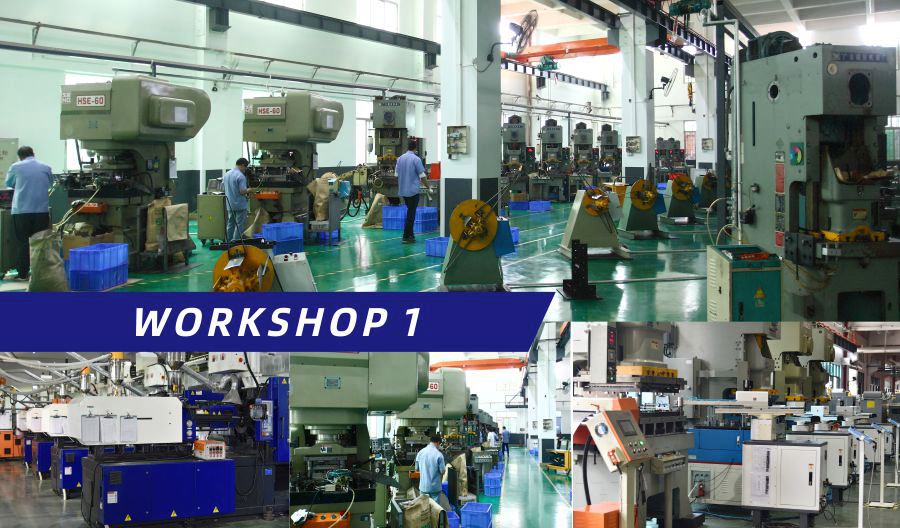

Our workshop

Tips for Installation of MCBs

1.  Ensure that the power supply to the board is switched off before installation of the MCBs.

2.  Fully slacken all the MCB terminal screws.

3.  Slot the MCB into the appropriate bus bar outgoing way.

4.  Tighten the MCB bus bar/terminals to 1.7Nm (15lbf-in)

5.  Close the DIN rail clips on the isolator.




1Q: What Is The Area Your Company Cover?
A: Our company cover an area of : 68,000㎡ (Leliu factory)   80,000㎡

(Junan factory)


2Q:What Is Your MOQ?

A: Each range of products has its own MOQ, details you may check the details

in each item. Or mixed items in 1x20ft container.


3Q: What is your Price term?

A: We offer FOB SHUNDE price. And we would like to share the freight for your reference before shipment.


Thanks for concerning our Power Panel Box If you need any more information, please do not hesitate to contact us!.
