USB Plug Socket
Model No.: A811/9HZ/13/USB
MOQ: 1000 pcs
Payment: T/T or L/C
Brand: JUNON
MOQ: 1000 pcs
Payment: T/T or L/C
Brand: JUNON
In this modern life, how can we lack USB socket? Your Mobile phone, IPad, hi-fi equipment, it is anywhere with your life and you can’t live without a USB socket. JUNON new launched A series USB plug socket will satisfy you.

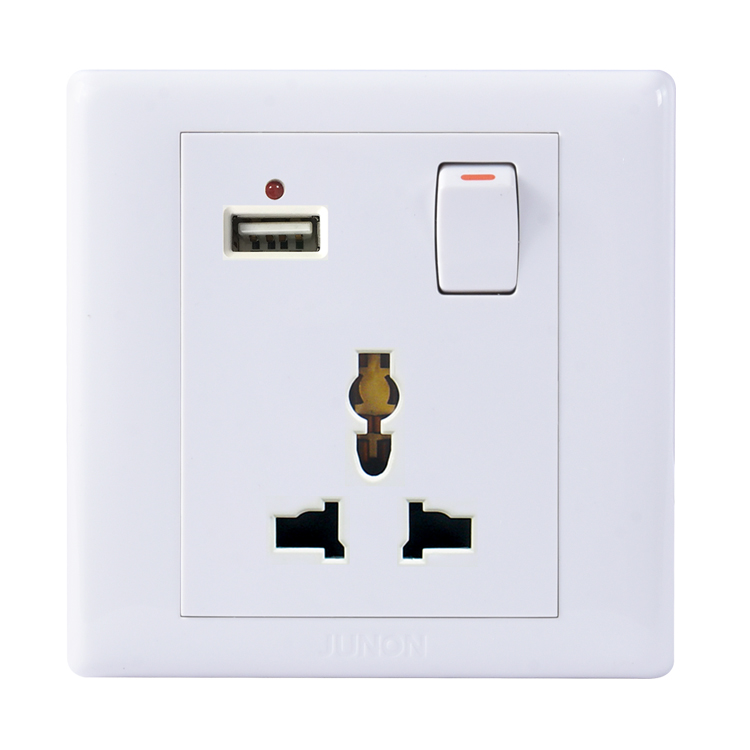

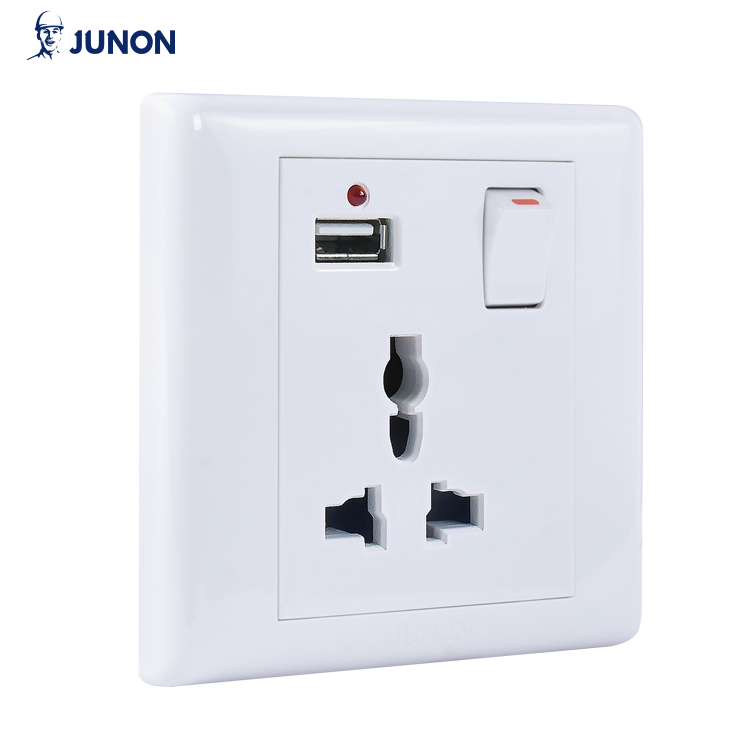

Product View:
Product characteristics
USB Plug Socket
USB charger conform to IEC 60950-1
USB Type-A 1 A - 5 VDC - 15 W
Consumption in passive mode less than 0.08W
White
With multifunction socket
General characteristics
Polycarbonate front cover plates with a glossy finish

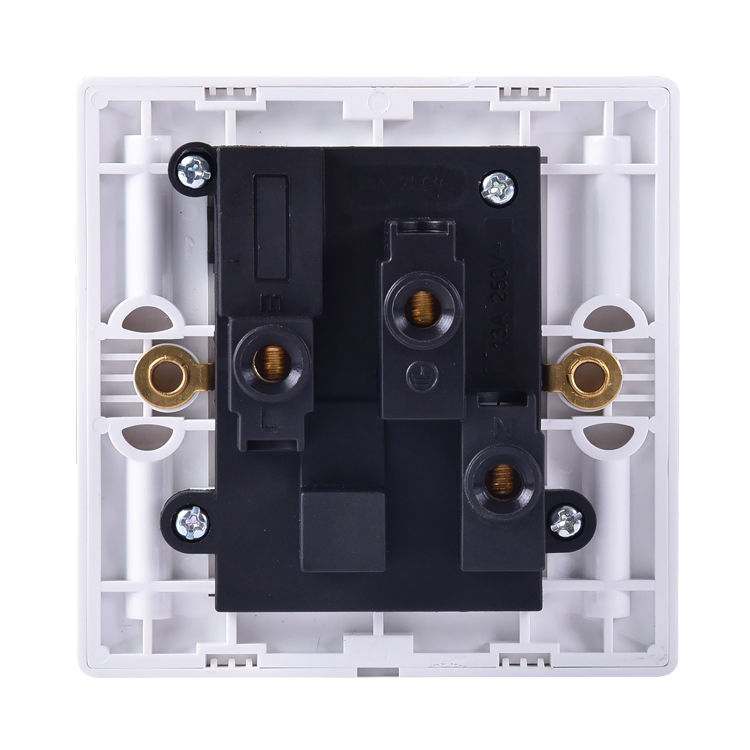

Compact mechanism for greater wiring space
Supplied with 2 screws M 3.5 for BS boxes
All sockets integrate child protection
Supplied complete with plate
Dim.: 86 x 86 mm
Quick Details:
Other Information:
Ambient air temperature for operation: 0°C -40 °C
Ambient air temperature for storage: -5°C -60 °C
Relative humidity: 0-95 %
Standards：IEC 60950-1, BS 1363-2
IP degree of protection: IP20
How to ship the goods?
What should you support us when we place the order?
How can I contact you and know more about you?
For more product details, please directly contact our sales, any doubts about the USB plug socket, they will give you a clear and satisfied reply.
Product View:
Product characteristics
USB Plug Socket
USB charger conform to IEC 60950-1
USB Type-A 1 A - 5 VDC - 15 W
Consumption in passive mode less than 0.08W
White
With multifunction socket
General characteristics
Polycarbonate front cover plates with a glossy finish
Compact mechanism for greater wiring space
Supplied with 2 screws M 3.5 for BS boxes
All sockets integrate child protection
Supplied complete with plate
Dim.: 86 x 86 mm
Quick Details:
| Range | A series |
| Product or component type | Power socket outlet + USB charger |
| Device presentation | Mechanism |
| Socket additional information | Shutter |
| Socket number | 1 |
| Device mounting | Flush 47mm |
| Switch function | ON / OFF power socket outlet |
| Surface finish | Glossy |
| Rated current | Power circuit: 13 A 220...250 V, AC, 50/60 Hz |
| Input power | 16W |
| Material | PC cover + Nylon housing |
| Shape of screw head | Cross |
| Screwdriver shape | Philips |
Other Information:
Ambient air temperature for operation: 0°C -40 °C
Ambient air temperature for storage: -5°C -60 °C
Relative humidity: 0-95 %
Standards：IEC 60950-1, BS 1363-2
IP degree of protection: IP20
How to ship the goods?
What should you support us when we place the order?
How can I contact you and know more about you?
For more product details, please directly contact our sales, any doubts about the USB plug socket, they will give you a clear and satisfied reply.
